TIGER Wall Ties
A high‑performance mechanical fixing system for securely tying new or existing masonry. Suitable for starter and cavity applications in brick, block and concrete.
Choose Your TIGER Wall Tie

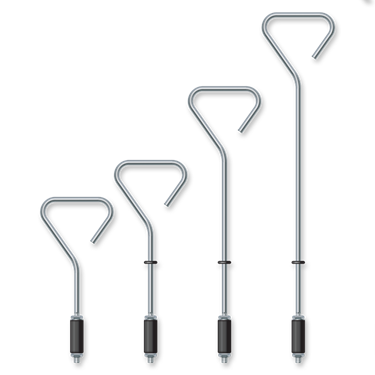

Starter Wall Ties
For tying new masonry walls, extensions and structures to existing brick, block or concrete.

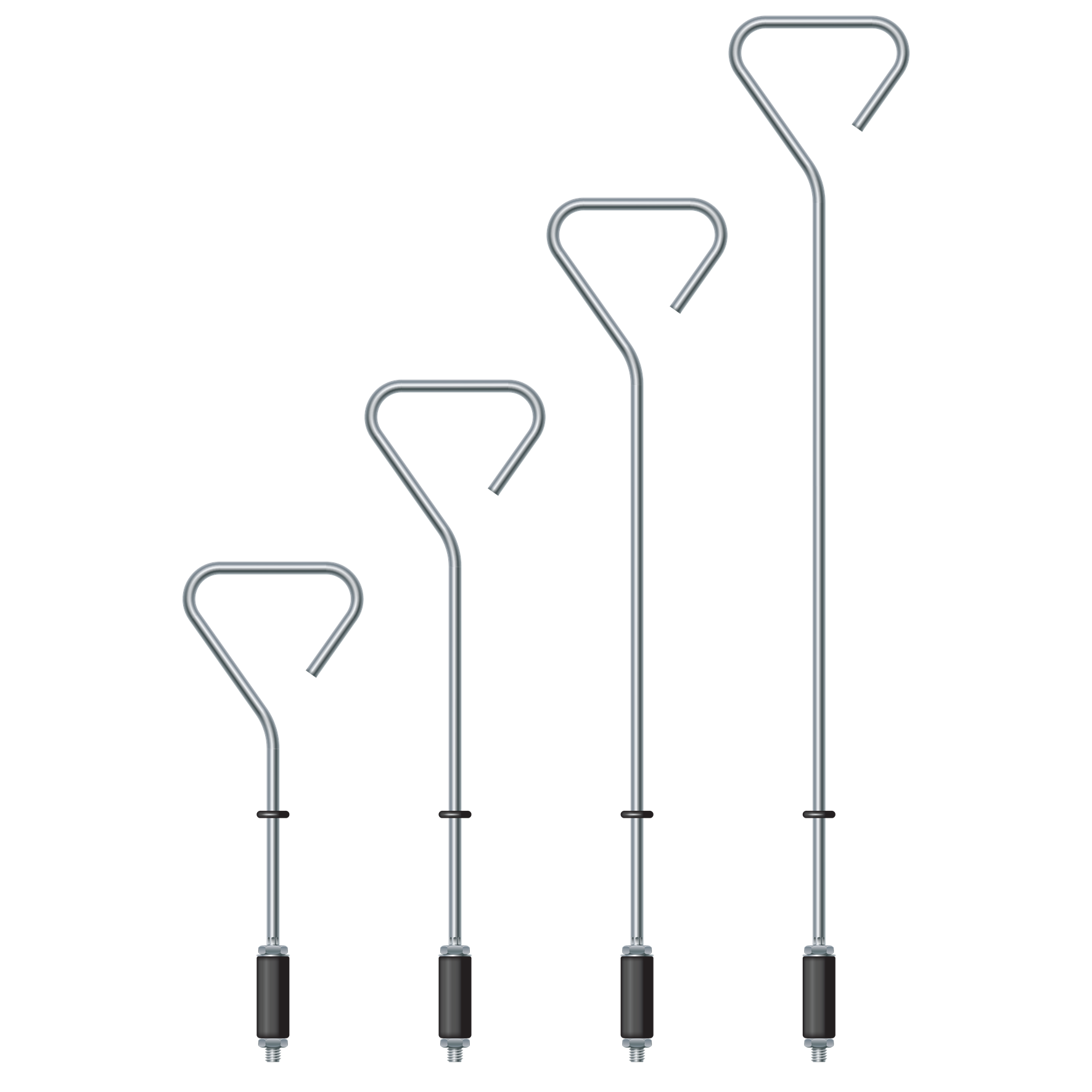

Cavity Wall Ties
For securely connecting the inner and outer leaves of cavity walls in new builds and extensions.
Installation (3 Steps)
→ Full TIGER Wall Ties Installation Guide

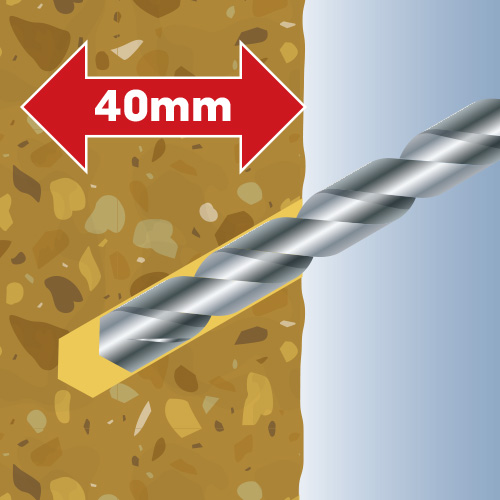

1. Drill the hole to the correct depth.

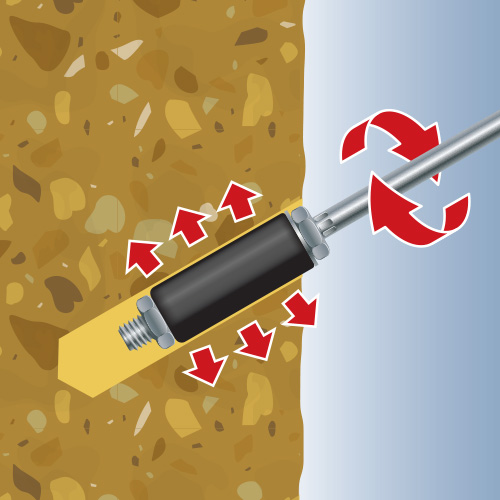

2. Insert the TIGER tie into the substrate.
3. Tighten the screw to expand the EPDM sleeve.
Why TIGER Ties Are Better
- One‑piece stainless steel construction for long‑term durability
- EPDM expansion sleeve grips the substrate even if the drilled hole is oversized
- Simple 3‑step installation — drill, insert, tighten
- UKCA approved and tested to BS EN 846‑6:2012
- Suitable for brick, block and concrete
Usage
- Ideal for concrete, block and brick
- Use in new builds, extensions and remedial work
- Suitable for domestic and commercial masonry
- Build new walls up to 3 storeys or 10 metres
Additional Benefits
- Quick and easy to fit
- Only requires an 8 mm diameter hole
- Only needs 40 mm hole depth
- No wall plug needed

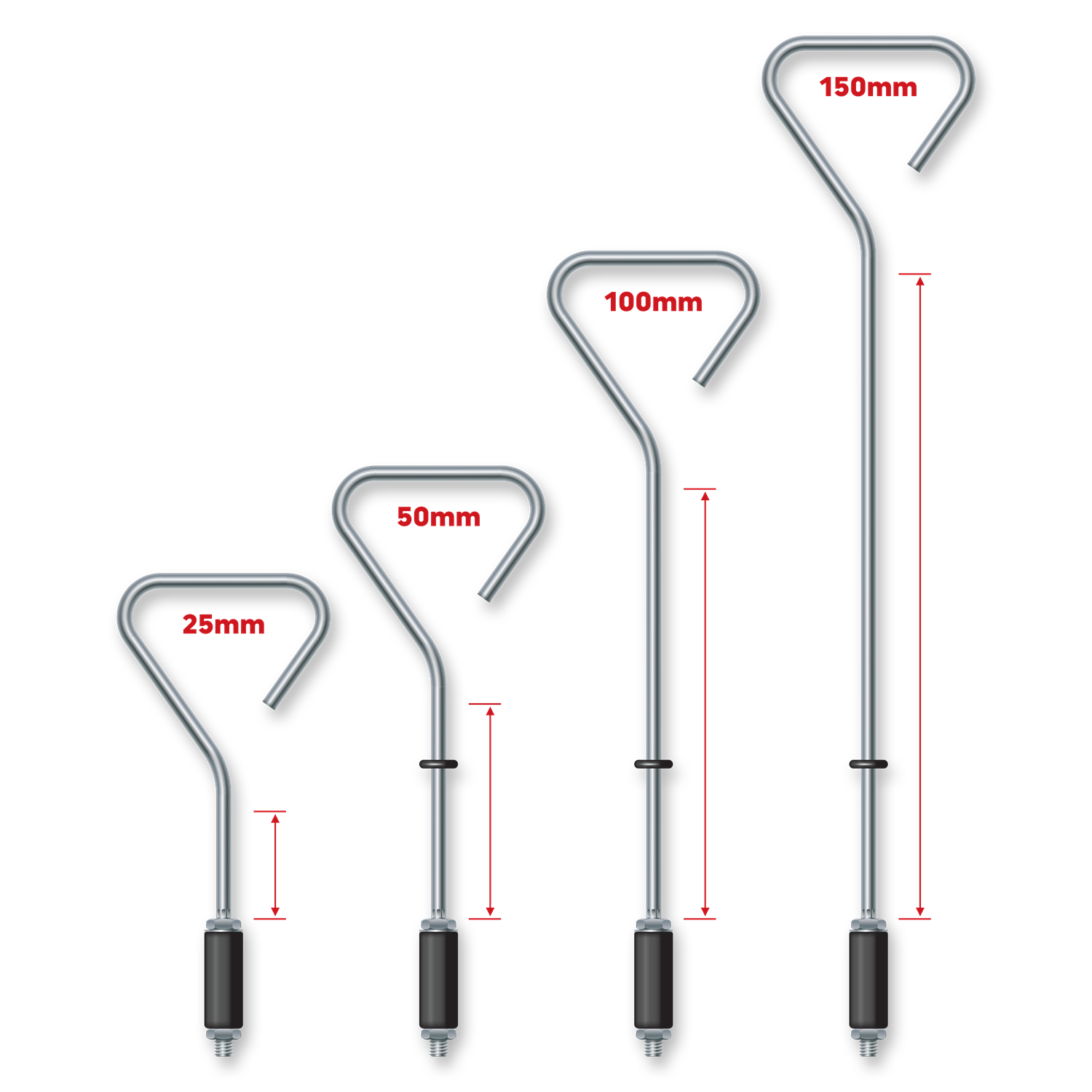

- Starter Ties in 25 / 50 / 100 / 150 mm lengths
- Universal Ties in 50 / 100 / 150 / 200 mm lengths
Quality
- Stainless steel 304 to BS1554
- 316 stainless available for coastal areas (on request)
- EPDM rubber sheath expands radially for 360° grip
- Manufactured in the UK to British Standards
Tested to BS EN 846‑6:2012 (wall tie tensile & compressive performance test method)
- Mean tension capacity (tested): 2960 N
- Mean compression capacity (tested): 2180 N
- Independently tested and UKCA-approved by Lucideon (July 2020)
- Full Lucideon test report (PDF)
Declarations of Conformity for TIGER Wall Ties are available below:
