TIGER Universal Wall Ties
For securely tying the inner and outer leaves of cavity walls in new builds, extensions and structural masonry.
Universal Wall Tie Range
Universal Wall Tie - 50 mm
Universal Wall Tie - 100 mm
Universal Wall Tie - 150 mm
Universal Wall Tie - 200 mm

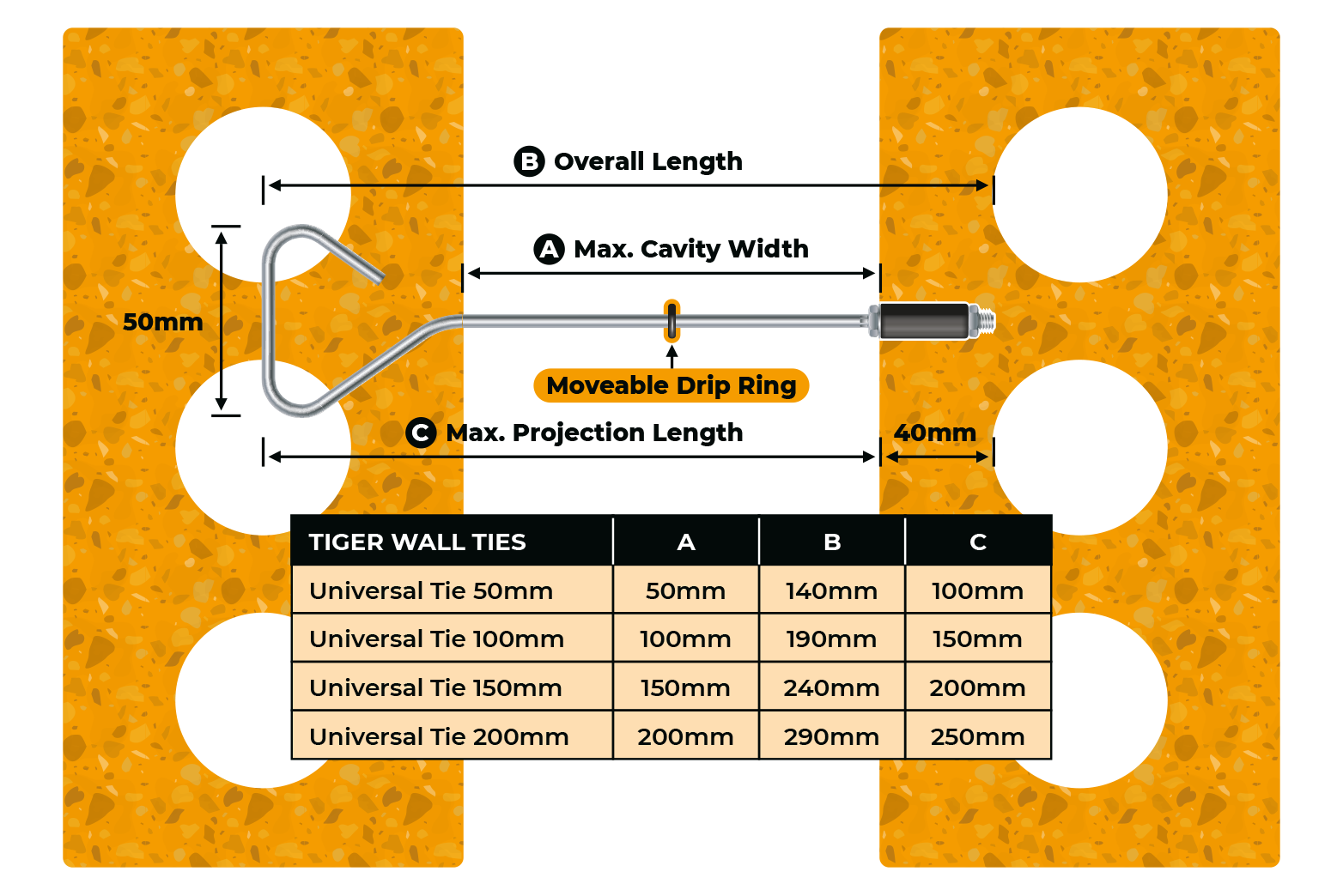

Choosing the Right Length
TIGER Universal wall ties must span the cavity and provide secure embedment into both masonry leaves. Typical cavity widths range from 50 mm to 150 mm, and the TIGER range (50–200 mm) covers all standard cavity constructions.
Choose a tie length that allows at least 40 mm embedment into each leaf while bridging the cavity width. The 50 mm, 100 mm, 150 mm and 200 mm TIGER Universal ties provide reliable performance across domestic and commercial cavity wall builds.
What Cavity Wall Ties Do
Cavity wall ties connect the inner and outer masonry leaves of a cavity wall, ensuring structural stability and preventing the two leaves from moving independently.
TIGER Universal ties provide a mechanical fixing solution that grips securely into brick, block or concrete, offering a clean alternative to traditional cavity tie designs while maintaining excellent load performance. Each tie includes an EPDM drip ring, which helps prevent moisture from tracking across the cavity.
Usage
- Ideal for tying inner and outer leaves of cavity walls
- Suitable for domestic and commercial cavity wall construction
- Use in new builds, extensions and structural masonry
- Provides reliable performance across 50–200 mm cavity widths
